Booking application

Invitation

Represents the table to which you want to attach the booking to. This table doesn’t need to be a new table in the data model, but instead the necessary fields could be added to an existing table, for example, Property or Customer table.

BookingWebID

Text

Select

Unique Web ID per invitation

“hBfc3DpXw1"

See Example rules - “Set Booking WebID”

BookingURL

Text

Select

Unique booking link (that is later sent to the customer) per invitation

“https://api.istools.com/?GetURLFromIstools=hBfc3DpXw1”

See Example rules - “Set Booking URL”

BookingAllowedSlots

Text

Select

Determines which time slots that are presented to the customer, i.e. the allowed time slots to be booked. Written in the 24-hour notation in the form hh:mm

“08:00-10:00,10:00-12:00,13:00-15:00,15:00-17:00”

See Example rules - “Set BookingAllowedSlots for Booking type 1”

BookingStartDay

BookingEndDay

Dates

Select

Determine the limitation of the booking interval

2019-11-30

2019-12-13

Keep them in a related Campaign table where they are manually edited, or trigger them on an event that initiates a booking process (Note: if they are triggered with rules make sure the values are set before the booking URL is presented to the customer)

BookingAvailableNumberOfDays

Number

Select

Determines the number of days to be shown (within the interval)with available time slots after the first detected available slot

10

Should be managed in the same way as BookingStartDay and BookingEndDay

BookingInvitationText

Note

Select

Optional text to be shown above booking calendar

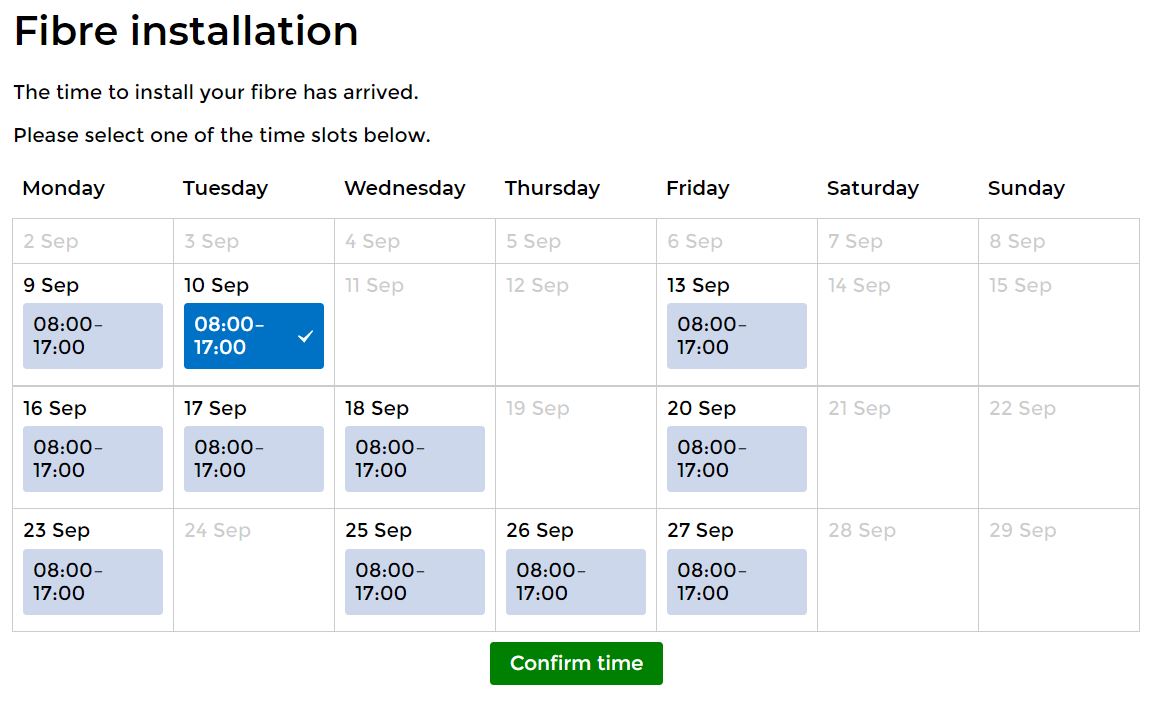

“Select a time slot for your service installation”

Set an unique text for each Invitation or a common text in a related table, through rules or manually

Campaign

Relation

Select

Relation to the Campaign table (which holds the booking capacity)

“Recordname of Campaign record”

Should be set by rules based on unique requirements and Campaign records

BookingAnswer

Text

Select

The answer from the customer, including start and end time of booking

“2019-12-04 10:00:00/2019-12-04 12:00:00”

Is set by the booking machine when the customer confirms a time slot. You need to handle the response by creating a timeslot in the Booking table (see Example rules - “Create Bookingfrom Booking machine”) as well as any other optional consequence of a booking. Tips: when creating a booking set a relation in each direction to and from the Booking record and the Invitation record (as in the rule example), in that way it is easier to transfer relevant data between correct records

Campaign

BookingCapacity

Number

Select

Determines the capacity for parallel bookings

5

Set the value manually or trigger itthrough a capacity logic from a team management process within the application

Booking

This is the table that keeps a list of existing bookings, i.e. where you create and store a new booking made from the booking machine as well as all other events made in the application. The mandatory start and end time of the records in this table is used to calculate the availability based on the capacity.

BookingStartTime

BookingEndTime

Date times

Select

Start time and End time of Booking record

2019-12-04 10:00:00

2019-12-04 12:00:00

See Example rules - “Set Start and End time from Answer”

Campaign

Relation

Select

Relation to the Campaign table (to connect occupied slots, i.e., existing Booking records, with the right Campaign (and booking capacity) when calculating the available slots for a new Invitation)

"Recordname of Campaign record"

Should be set to the same value as corresponding parent Invitation record, through rules when created

Set Booking WebID

Trigger table = Invitation

Target table = Invitation

Invitation = CREATED

Set the value of a field with a formula

BookingWebID = randomString(10)

Set Booking URL

Trigger table = Invitation

Target table = Invitation

BookingWebID = CHANGED

Set the value of a field with a formula

BookingURL = "https://api.istools.com/?GetURLFromIstools=" + VALUE(BookingWebID)

Set BookingAllowedSlots for Booking type 1

Trigger table = Invitation

Target table = Invitation

Booking type = 1

Set the value of a field

BookingAllowedSlots = 08:00-10:00,10:00-12:00,13:00-15:00,15:00-17:00

Create Booking from Booking machine

Trigger table = Invitation

Target table = Invitation

BookingAnswer = INSERTED

Create a record

new Record of table "Booking" in group "STANDARD", relation "Invitation" will be set to rule target record, relation "Booking - Booking Machine" on the target record will be set to newly created record

Set Start and End time from Answer

Trigger table = Booking

Target table = Booking

Booking = CREATED (could be complemented with a type check if Booking records isn’t only created through the booking machine)

Set the value of a field with a formula

BookingAnswerStartTime = parseDateFormat( substring(relatedValue(REF(Invitation),REF(BookingAnswer)) , 0 , 19 ), "YYYY-MM-DD", "HH:MM:SS")

Set the value of a field with a formula

BookingAnswerEndTime = parseDateFormat( substring(relatedValue(REF(Invitation),REF(BookingAnswer)) , 20 , 39 ), "YYYY-MM-DD", "HH:MM:SS")
